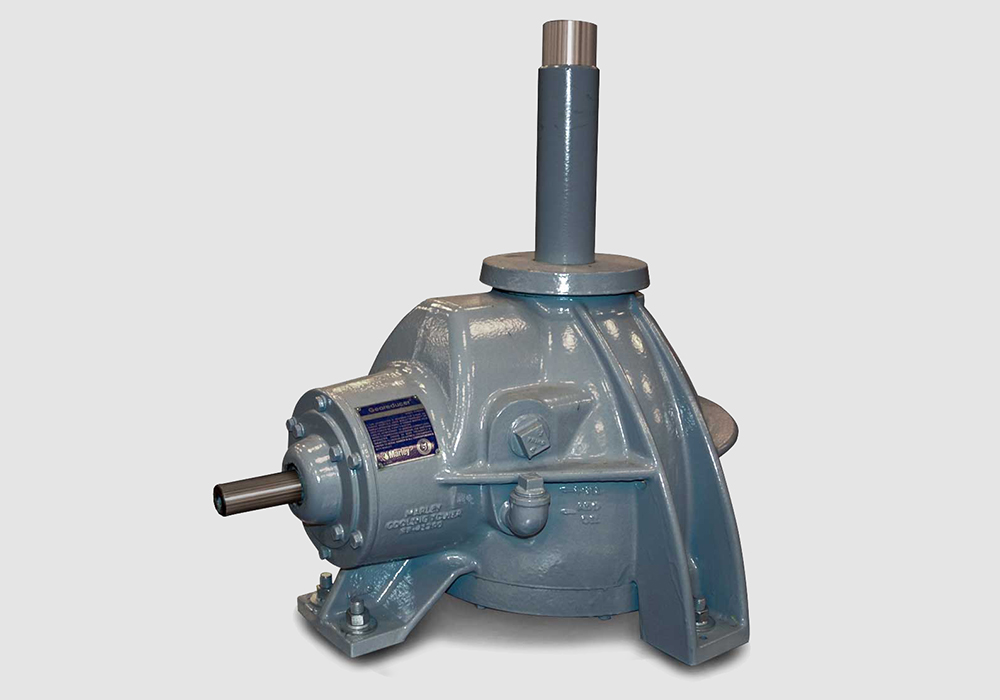

Cooling Tower Gear Box

Name: Cooling Tower Gear Box
Brand: COOLMECH COOLING TOWER
Price: 50000.0 INR
Availability: InStock

Price 50000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Gear Box Specification

Material
Cast Iron Housing, Hardened Steel Gears

Motor
Direct Coupled Motor Compatible

Application
Cooling Towers

Condition
New

Type
Right Angle Gear Box

Dimension (L*W*H)
Custom/As Per Model Specification

Power Supply
3 Phase Electric Motor Input

Voltage
415 V

Cooling Type
Mechanical Drive

Noise Control
Low Noise Operation

Output Speed
144 - 240 RPM (Depending on Gear Ratio)

Bearing
High Quality Heavy Duty Anti-Friction Bearings

Input Speed
1440 RPM (Standard)

Protection
Dust & Water Resistant Sealing

Lubrication
Oil Splash System

Gear Ratio
6:1, 8:1, 10:1, 12:1 (Model Dependent)

Weight
Vary as per Model (Typically 45 - 95 kg)

Mounting Type
Foot Mounted

Output Shaft
Hollow or Solid, As Required

Finish
Anti-corrosive Paint Finish

Cooling Tower Gear Box Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Cooling Tower Gear Box

Short Description:

Cooling Tower Gear Box is a heavy-duty speed reduction unit used in induced draft cooling towers to reduce motor RPM and increase torque for efficient fan operation. It is typically a right-angle bevel gearbox designed for vertical shaft mounting. The gearbox ensures smooth power transmission, low vibration, and long operational life under continuous industrial use.

Technical Specifications:

Type: Right Angle Bevel Gearbox
Mounting: Vertical Shaft Mounting
Housing Material: Cast Iron / Ductile Iron
Gear Material: Alloy Steel, Hardened & Ground
Reduction Ratio: As per requirement (e.g., 4:1 to 10:1)
Input Speed: 750 1500 RPM (Typical)
Output Speed: As per Fan Design
Lubrication: Oil Bath / Splash Lubrication
Cooling Method: Natural Air Cooled
Application: Induced Draft Cooling Towers
Function: Reduces Motor Speed & Increases Torque for Fan

Versatile Gear Ratios for Custom Solutions

Select from gear ratios of 6:1, 8:1, 10:1, or 12:1-model dependent-allowing end-users to match specific torque and speed requirements for a wide range of cooling tower applications. This flexibility ensures optimal drive efficiency and adaptability across industrial installations.

Durable Construction with Enhanced Protection

Crafted from high-quality cast iron and fitted with precision-hardened steel gears, our gearboxes offer robust durability. With superior dust and water-resistant sealing and a protective anti-corrosive paint finish, these units are designed for reliability in demanding environments.

Engineered for Seamless Integration

Featuring a foot-mounted right-angle configuration, custom output shaft options, and compatibility with 415V, 3-phase direct-coupled motors, installation and ongoing maintenance are simplified. Each unit is tailored to fit both standard and specified dimensional requirements for smooth integration.

FAQ's of Cooling Tower Gear Box:

Q: How does the cooling tower gearbox benefit industrial operations?

A: This gearbox is engineered for cooling tower applications, providing reliable torque transmission, efficient speed reduction, low noise operation, and enhanced durability, resulting in consistent cooling performance and reduced downtime in industrial processes.

Q: What gear ratios are available for this cooling tower gearbox?

A: The gearbox is available in gear ratios of 6:1, 8:1, 10:1, and 12:1, with the specific ratio depending on the model selected. This allows users to choose the most appropriate configuration for their application's speed and torque requirements.

Q: When should the oil splash lubrication system be checked or maintained?

A: It is recommended to check the oil level and condition regularly as per the manufacturer's guidelines-typically during scheduled maintenance intervals. Proper lubrication ensures smooth operation and extends the lifespan of the gearbox.

Q: Where can this gearbox be installed, and how is it mounted?

A: Designed primarily for cooling towers, the gearbox features a versatile foot-mounted setup, allowing secure installation onto base plates or support structures within industrial cooling systems.

Q: What output shaft options are available with this model?

A: Depending on project needs, the gearbox can be supplied with either a hollow or solid output shaft, providing flexibility in coupling to different drive shafts or components in the cooling tower system.

Q: How does the sealing system protect the gearbox?

A: The gearbox features dust and water-resistant seals that safeguard internal components from contaminants and moisture, thereby improving operational reliability and reducing the risk of premature wear.
